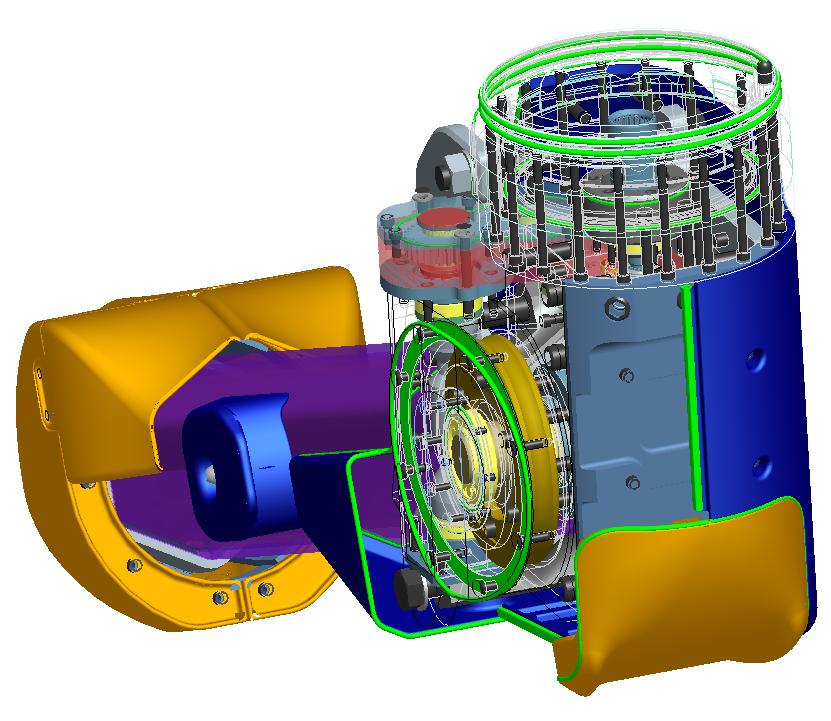

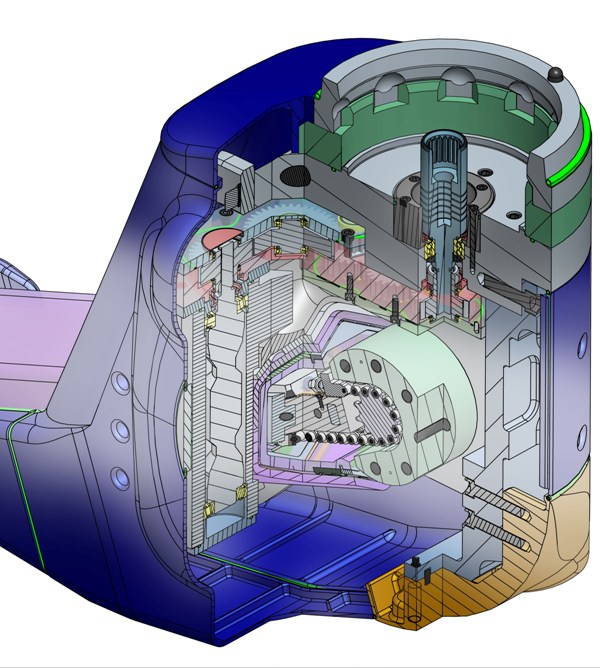

Special purpose remote arms
  Haydndesign was awarded the project to take from concept the method of emptying a silo of nuclear waste material.

This required determining the best way forward to implement a mechanical manipulator arm.

  • So by developing from the key parameters, stroke, speed, load rating we had determined the working requirements during the anticipated cycle.

This was a completely bespoke solution to a hazardous environment using traditional mechanical principles due to the need for extreme reliability and rugged construction whilst allowing for jettison and maintenance.

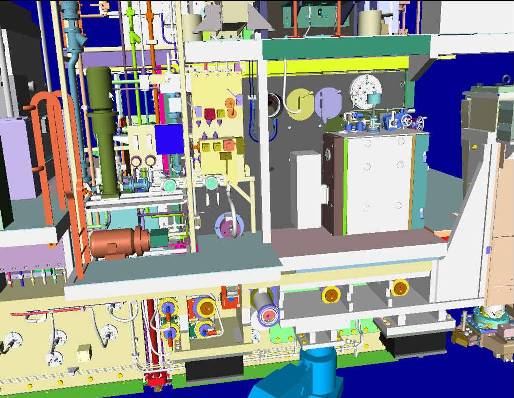

  Large assembly design


Haydndesign have undertaken many projects to design and detail machines for the food packaging industry, paper handling and nuclear de-commissioning industries.

Including:-

  • Mechanism design and analysis

  • Electrical machine mechanical configuration

  • Large castings

  • welded fabrications to 50 tonnes

  • precision machining

  • routing of services (hydraulic, water, electrical)

  • maintenance procedures

  • general space management

  • ALARP reviews

  • FMEA's

  • Manufacturing liaison and design clarification.
