Flow Analysis



Using the 3D geometry directly allows for us to try many iterations of flow paths whilst developing a product whether that is to provide, flow rate, component forces, pressure drop or velocity profiles.

We have used this technique to develop many products for our clients over the last 8 years.

Typically in:

  • Large industrial electrical machine cooling
  • OEM 19 rack enclosure design

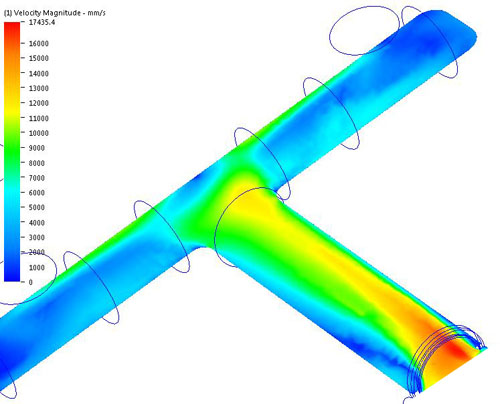

  • Piping systems and pressure drops.
  • heat sink design and performance optimisation
